CURTIS C89 PUMP
CURTIS C98 PUMP

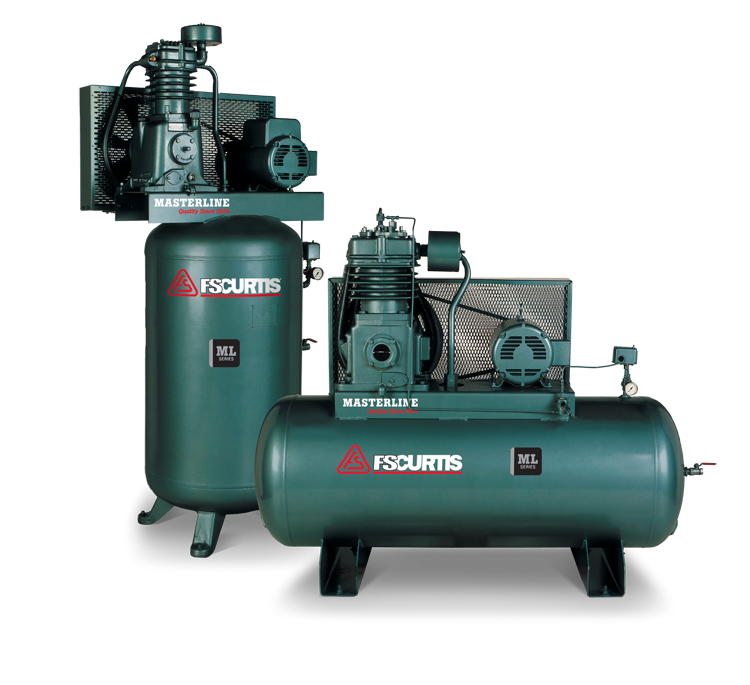

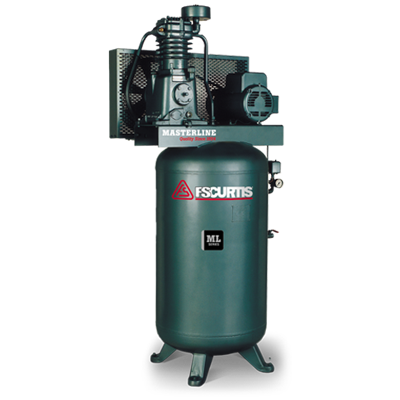

CURTIS ML SERIES COMPRESSOR PARTS
 |
| CURTIS C98 PUMP |
 |
| CURTIS C89 PUMP |
CALL FOR PRICES:
214-428-2868
WE DROP SHIP ANYWHERE WITHIN THE USA.
| COMPRESSOR REPLACEMENT PARTS | |||
| Item | Part No. | Description | Qty |
| 1 | CM1006B | Cylinder | 1 |
| 2 | VH12RN | Screw, Cap. Hex Hd., Gr. 5 | 6 |
| 3 | CDB1342 | Piston, HP (Std) | 1 |
| 4 | CDB1342-010 | Piston, HP (.010 Oversize) | 1 |
| 5 | CDB1342-030 | Piston, HP (.030 Oversize) | 1 |
| 6 | CQ868 | Set, Rings HP Piston (Std) | 1 |
| 7 | CQ868-010 | Set, Rings HP Piston (.010 Oversize) | 1 |
| 8 | CQ868-030 | Set, Rings HP Piston (.030 Oversize) | 1 |
| 9 | CDB1335 | Pin, HP Piston | 1 |
| 10 | VH1312 | Pin, Roll ¼” x 11/16” Lg. | 2 |
| 11 | CDB1346 | HP Piston w/Rings & Pin (Std) | 1 |
| 12 | CDB1346-010 | HP Piston w/Rings & Pin (.010 Oversize) | 1 |
| 13 | CDB1346-030 | HP Piston w/Rings & Pin (.030 Oversize) | 1 |
| 14 | CM1047 | Ring, Oiling | 1 |
| 15 | VH15J | Nut, Hex 3/8 UNF | 4 |
| 16 | VH35K | Lockwasher, Split 3/8” | 4 |
| 17 | CDA1244 | Bearing, Set Conn. Rod (Std) | 2 |
| 18 | CDA1245 | Brg, Set Conn. Rod (.001 Undersize shaft) | 2 |
| 19 | VH12JS | Screw, Cap Hex Hd 3/8-24 UNF x 2 ¾” Lg, Gr. 5 | 4 |
| 20 | CDB1333 | Connecting Rod, Machining | 2 |
| 21 | CD841 | Bearing, Needle Roller, Full Compliment | |
| “Torrington” B-1812 | 4 | ||
| 22 | CDB1336 | Pin, LP Piston | 1 |
| 23 | CDB1341 | Piston, LP (Std) | 1 |
| 24 | CDB1341-010 | Piston, LP (.010 Oversize) | 1 |
| 25 | CDB1341-030 | Piston, LP (.030 Oversize) | 1 |
| 26 | CM1033 | Set, Rings LP Piston (Std) | 1 |
| 27 | CM1033-010 | Set, Rings LP Piston (.010 Oversize) | 1 |
| 28 | CM1033-030 | Set, Rings LP Piston (.030 Oversize) | 1 |
| 29 | CDB1348 | LP Piston w/Rings & Pin (Std) | 1 |
| 30 | CDB1348-010 | LP Piston w/Rings & Pin (.010 Oversize) | 1 |
| 31 | CDB1348-030 | LP Piston w/Rings & Pin (.030 Oversize) | 1 |
| 32 | CD1239 | Gasket, Side Door | 2 |
| 33 | VB403 | “O” Ring | 1 |
| 34 | CM1031 | Gasket, Crankcase | 1 |
| 35 | CCA1290 | Dip Stick | 1 |
| 36 | VH23KW | Pin, Cotter - 5/16” x 3 ¾” | 1 |
| 37 | VH01CC | Screw, Machine 10/32” x 3/8” | 6 |
| 38 | VH38D | Lockwasher | 2 |
| 39 | CDA1253 | Baffle, Oil | 1 |
| 40 | VD819C | Cone, Roller Bearing, No. 3578 (Small End Plate) | 1 |
| 41 | VD818 | Cup, Roller Bearing, No. 3525 (Small End Plate) | 1 |
| 42 | CD1290 | Set, Shim Small End Plate | 1 |
| 43 | CJ412-4 | Gasket, Small End Plate | 2 |
| 44 | CJ408-2 | Plate, Small End | 2 |
| 45 | CM665 | Gasket, Breather Cover | 1 |
| 46 | CM664 | Valve, Breather | 1 |
| 47 | VH12FD | Screw, Hex Hd. Cap ¼”-20 x ½” Lg. | 2 |
| 48 | VH35F | Lockwasher, Split ¼” | 2 |
| 49 | CA2323 | Plate, Flange Cover | 1 |
| 50 | VA01DR | Plug, Pipe ½” | 1 |
| 51 | CA2312 | Gasket, Flange Cover Plate | 1 |
| 52 | CDA1214 | Door, Side w/Breather Port | 1 |
| 53 | CM1005 | Crankcase | 1 |
| 54 | CDA1231 | Key, 3/8” x ½” x 2 ¾” Lg | 1 |
| 55 | CM1048 | Crankshaft | 1 |
| 56 | VB820 | Cone, Roller Bearing, No. 3780 (Lrg. End Plate Side) | 1 |
| 57 | VD821 | Cup, Roller Bearing, No. 3720 (Lrg. End Plate Side) | 1 |
| 58 | CJ412-2 | Gasket, Large End Plate, .007 Paper | 1 |
| 59 | CDA1227 | Plate, Large End w/Bearing Cup & Oil Seal | 1 |
| 60 | VB301 | Seal, Oil | 1 |
| 61 | CDA1264 | Bracket, Intercooler | 1 |
| 62 | CDA1265 | Clamp, Intercooler | 1 |
| 63 | VH11KR | Screw, Hx. Hd. Cap., 3/8” - 16 x 2 ½” Lg. | 1 |
| 64 | VH1501 | Nut, Hex 1 ¼” - 12 | 1 |
| 65 | VH37Z | Lockwasher, 1 ¼” x .336 x .244 | 1 |
| 66 | CDA1248 | Flywheel | 1 |
| 67 | CDA1252B | Intercooler, Inner (CDA1263B w/Sleeves) | 1 |
| 68 | CDA1252A | Intercooler, Outer (CDA1263A w/Sleeves) | 1 |
| 69 | CR226-6 | Nut, Hex 1” Intercooler | 4 |
| 70 | CR226-5 | Sleeve, 1” Intercooler | 4 |
| 71 | VH1223 | Washer, ½” | 3 |
| 72 | VH12PYU | Screw, Hex Hd. Cap. ½” - 13 x 4 ½”Lg., Gr. 5 | 1 |
| 73 | CD1207-1 | Manifold, Intercooler | 2 |
| 74 | VA01BA | Plug, Sq. Hd ¼” NPT Steel Pipe | 1 |
| 75 | CDA1225 | Gasket, Manifold | 2 |
| 76 | VH12PW | Screw, Hex Hd. Cap ½” - 13 x 3 ½”Lg., Gr. 5 | 1 |
| 77 | VV405 | Valve, Safety, ¼” MPT x 70 PSIG | 1 |
| 78 | CM1008 | Flange, Manifold | 1 |
| 79 | VAC843 | Nipple, 1 ½” x 4” Seamless Pipe | 1 |
| 80 | VA1121 | Filter Element Only | 1 |
| 81 | VA1114 | Filter/Silencer Suction 1 ½” NPT | 1 |
| 82 | CM1030 | Gasket, Cyl. Hd. 1/32” | 1 |
| 83 | CM1026 | Assy., Cyl. Hd. w/Valves & Unloaders | 1 |
| 84 | CM1051 | Head, Cylinder | 1 |
| 85 | CM1015 | Gasket, LPV | 2 |
| 86 | CM1023 | Assy., LPSV | 1 |
| 87 | VH13JM | Screw, Cap Hex Hd. Soc. 3/8”-24 x 1 ½” Lg. | 11 |
| 88 | CBA976 | Spring, Unloader Bypass | 1 |
| 89 | CM1040 | Spring, Valve | 14 |
| 90 | CM1011 | Disc, Valve | 2 |
| 91 | CM1057 | Seat, LPSV | 1 |
| 92 | VH20J | Nut, Hex, Self Locking 3/8” -24 | 2 |
| 93 | VH14JM | Screw, Cap Hex Hd. Soc. 3/8”-24 x 1 ½” Lg. Flat Hd. | 1 |
| 94 | CM1013 | Seat, LPDV | 1 |
| 95 | CMA646 | Buttons, Valve Spring | 28 |
| 96 | CM1014 | Backstop, LPV | 2 |
| 97 | CM1024 | Assy., LPDV | 1 |
 |
|||
| 98 | CBA953 | Spring, Unloader Fork | 1 |
| 99 | CM1018 | Sleeve, Hold Down, LPDV | 1 |
| 100 | CBB932 | Fork, Unloader, LPSV | 1 |
| 101 | CM1022 | Gasket, Valve Cover LP | 2 |
| 102 | CBA954 | Guide, Fork | 1 |
| 103 | CM1009A | Cover, Valve LP | 1 |
| 104 | VH11PK | Screw, Cap Hex Hd. ½”-13 x 1 ¼” Lg. | 6 |
| 105 | CM1016 | Sleeve, Hold Down LPSV | 1 |
| 106 | CM1009B | Cover, Valve LPS | 1 |
| 107 | CBA959 | Assy., Unloader Cylinder | 1 |
| 108 | CBA961 | Cylinder, Unloader | 1 |
| 109 | CB613-8 | Lock Nut, Hex, 1 1/8” | 2 |
| 110 | CBA960 | Piston, Unloader | 1 |
| 111 | VB407 | O ring 5/8” OD x 7/16” OD | 2 |
| 112 | CBA924 | Cap, Unloader Cylinder | 2 |
| 113 | VA729 | Tee, ¼” x ¼” x ¼” MPT Branch | 1 |
| 114 | CBA951 | Tube, Unloader ¼” OD | 1 |
| 115 | VA15BCE | Elbow, Compression, ¼”MPT x ¼” Tube | 1 |
| 116 | CBB900 | Assy., Unloader Cylinder HPSV | 1 |
| 117 | CBB902 | Piston, Unloader HPSV | 1 |
| 118 | CBB901 | Cylinder, Unloader, HPSV | 1 |
| 119 | VB411 | O Ring 7/16” OD x .103 | 1 |
| 120 | RK206-3 | Stud Nut 9/16” Hex x 7/8” Lg. | 6 |
| 121 | VH09KP | Screw, Set 3/8’-16 x 2” Lg. | 6 |
| 122 | VH1232 | Washer, 17/32” x 45/64” x .051 | 6 |
| 123 | CM1021 | Plug HPSV | 1 |
| 124 | VB909 | Gasket | 2 |
| 125 | VH09PN | Set Screw ½”-13 x 1 ¾” Lg. Hex. Soc. | 1 |
| 126 | CCB1267 | Nut, Cap ½”-13 | 1 |
| 127 | CM1038-2 | Washer, Cut | 1 |
| 128 | CM1038-1 | Sleeve, Hold Down HPSV | 1 |
| 129 | CBB904 | Buffer HPSV | 1 |
| 130 | CCB1269 | Plug, HPDV | 1 |
| 131 | CM1037-2 | Disc, HPDV | 1 |
| 132 | CM1037-1 | Sleeve, Hold Down HPDV | 1 |
| 133 | CBA940 | Fork, Unloader HPSV | 1 |
| 137 | CJ1524 | Seat, Valve | 1 |
| 138 | CJ1526 | Disc, Valve | 2 |
| 139 | CM1034 | Backstop, Valve | 1 |
| 140 | VH14EM | Screw, Flat Head Socket | 2 |
| 141 | CM1041 | Assy., HPDV | 1 |
| 142 | CJ1527 | Backstop, Valve | 1 |
| 143 | CJ1528 | Seat, Valve HP | 1 |
| 144 | CJ1518 | Gasket, Valve HP | 2 |
| 145 | CM1045 | Set, Gasket | 1 |
| 146 | VH12RY | Screw, Hex, Hd. Cap 5/8”-11 x 4 ½” Lg. Gr.5 | 8 |
| 147 | CM1029 | Assy., Crankshaft, with Bearing Cones | 1 |
| 148 | CM663 | Cover, Breather | 1 |
| 149 | CDA1213 | Baffle, Door | 1 |
| 150 | CDA1249 | Door, Side with Oil Fill Port | 1 |
| 151 | CDB1347 | HP Piston w/Rings, Pin & Rod Assy (Std Piston & Brg Set) | 1 |
| 152 | CDB1347-001 | HP Piston w/Rings, Pin & Rod Assy (Std Piston &.001 | |
| Oversized Brg Set) | 1 | ||
| 153 | CDB1334 | Connecting Rod, Complete Assy (Std, Brg Set) | 2 |
| 154 | CDB1334-001 | Connecting Rod, Complete Assy (.001 Oversized, Brg Set) | 2 |
| 155 | CDB1349 | LP Piston w/Rings, Pin & Rod Assy (Std Piston & Brg Set) | 1 |
| LP Piston w/Rings, Pin & Rod Assy (Std Piston &.001 | |||
| 156 | CDB1349-001 | Oversized Brg Set) | 1 |
| 157 | VH12KK | Screw, Hex Hd. Cap 3/8”-16 x 1 ¼” Lg. Gr. 5 | 16 |
CURTIS C98 PUMP PART NUMBERS AND DESCRIPTIONS
 |
| CURTIS C98 PUMP |
CURTIS C98 CHECK VALVES, CURTIS C98 PISTONS, CURTIS C98 GASKETS, CURTIS C98 VALVE PLATES, CURTIS C98 RODS, CURTIS C98 HOSES, CURTIS C98 BELTS, CURTIS C98 PISTON RINGS, CURTIS C98 OEM REPLACEMENT PARTS CALL: 214-428-2868
| DESCRIPTION | PART NO | |
| C98 COMPRESSOR | FMLC98 | |
| BELT GUARD (STD) | FCA2287P | |
| BELT GUARD (WITH AC)* | FCAF2223P | |
| BRACKET, TOP* | FCA2290 | |
| BRACKET, SIDE* | FCA2290C | |
| AFTER COOLER* | FVA533A | |
| DISCHARGE HOSE (PUMP TO AC)* | FVA1026 | |
| ELECTRIC MOTOR | ||
| 20HP, 200V, 3PH | FMT209X4 | |
| 20HP, 230/460V, 3PH | FMT203X4F | |
| 20HP, 575V, 3PH | FMT208X4 | |
| 25HP, 200V, 3PH | FMT259X4F | |
| 25HP, 230/460V, 3PH | FMT253X4F | |
| 25HP, 575V, 3PH | FMT258X4 | |
| 30HP, 200V, 3PH | FMT309X4T | |
| 30HP, 230/460V, 3PH | FMT303X4F | |
| 30HP, 575V, 3PH | FMT308X4 | |
| MOTOR RAIL | FOH127 | |
| BASE | FCAA1941 | |
| SOLENOID VALVE (175PSI) | ||
| 120V | FVV223A | |
| 230V | FVV223B | |
| 460V | FVV223C | |
| 200V | FVV223G | |
| 575V | FVV223J | |
| PRESSURE SWITCH* | FVS300 | |
| STARTER* | ||
| 20HP, 200V, 3PH | FST203T1 | |
| 20HP, 230V, 3PH | FST203T1 | |
| 20HP, 460V, 3PH | FST204M1 | |
| 20HP, 460V, 3PH WITH TRANSFORMER | FVSG845T | |
| 20HP, 575V, 3PH | FST208L1 | |
| 25HP, 200V, 3PH | FST252W1 | |
| 25HP, 230V, 3PH | FST253W1 | |
| 25HP, 460V, 3PH | FST254N1 | |
| 25HP, 460V, 3PH WITH TRANSFORMER | FVSG848T | |
| 25HP, 575V, 3PH | FST258N1 | |
| 30HP, 200V, 3PH | FST303X1 | |
| 30HP, 230V, 3PH | FST303X1 | |
| 30HP, 460V, 3PH | FST304R1 | |
| 30HP, 460V, 3PH WITH TRANSFORMER | FVSG905 | |
| 30HP, 575V, 3PH | FST308N1 | |
| LOW OIL GUARD* | FCM1069A | |
| MOTOR PULLEY * | ||
| 20HP | FVD225 | |
| 25HP | FVD235 | |
| 30HP | FVD230 | |
| V-BELT * | ||
| 20HP | FVD389 | |
| 25HP | FVD400 | |
| 30HP | FVD396 | |
| VIBRATION PADS (6 PIECES) * | FVF134C-1 | |
| DESCRIPTION | PART NO | |
| C98 COMPRESSOR | FMLC98 | |
| BELT GUARD (STD) | FCA2287P | |
| BELT GUARD (WITH AC)* | FCAF2223P | |
| BRACKET, TOP* | FCA2290 | |
| BRACKET, SIDE* | FCA2290C | |
| AFTER COOLER* | FVA533A | |
| DISCHARGE HOSE (STD) | FVA1026 | |
| DISCHARGE HOSE (PUMP TO AC, AC TO TANK)* | FVA1026 | |
| BALL VALVE | FVV554 | |
| TANK | FOFD253 | |
| PRESSURE SWITCH | FVS300 | |
| RELIEF VALVE | FVV404 | |
| PRESSURE GAUGE | FVA302 | |
| BASE | FCAA1944 | |
| SOLENOID VALVE (175PSI) | ||
| 120V | FVV223A | |
| 230V | FVV223B | |
| 460V | FVV223C | |
| 200V | FVV223G | |
| 575V | FVV223J | |
| MOTOR RAIL | FOH127 | |
| ELECTRIC MOTOR | ||
| 20HP, 200V, 3PH | FMT209X4 | |
| 20HP, 230/460V, 3PH | FMT203X4F | |
| 20HP, 575V, 3PH | FMT208X4 | |
| 25HP, 200V, 3PH | FMT259X4F | |
| 25HP, 230/460V, 3PH | FMT253X4F | |
| 25HP, 575V, 3PH | FMT258X4 | |
| 30HP, 200V, 3PH | FMT309X4T | |
| 30HP, 230/460V, 3PH | FMT303X4F | |
| 30HP, 575V, 3PH | FMT308X4 | |
| STARTER | ||
| 20HP, 200V, 3PH | FST203T1 | |
| 20HP, 230V, 3PH | FST203T1 | |
| 20HP, 460V, 3PH | FST204M1 | |
| 20HP, 460V, 3PH WITH TRANSFORMER | FVSG845T | |
| 20HP, 575V, 3PH | FST208L1 | |
| 25HP, 200V, 3PH | FST252W1 | |
| 25HP, 230V, 3PH | FST253W1 | |
| 25HP, 460V, 3PH | FST254N1 | |
| 25HP, 460V, 3PH WITH TRANSFORMER | FVSG848T | |
| 25HP, 575V, 3PH | FST258N1 | |
| 30HP, 200V, 3PH | FST303X1 | |
| 30HP, 230V, 3PH | FST303X1 | |
| 30HP, 460V, 3PH | FST304R1 | |
| 30HP, 460V, 3PH WITH TRANSFORMER | FVSG905 | |
| 30HP, 575V, 3PH | FST308N1 | |
| LOW OIL GUARD* | FCM1069A | |
| MOTOR PULLEY * | ||
| 20HP | FVD225 | |
| 25HP | FVD235 | |
| 30HP | FVD230 | |
| V-BELT * | ||
| 20HP | FVD389 | |
| 25HP | FVD400 | |
| 30HP | FVD396 | |
| ELECTRIC TANK DRAIN* | FVA536-1 | |
| VIBRATION PADS (6 PIECES) * | FVF134C-1 |
CURTIS C98 PUMP
CURTIS ML SERIES COMPRESSOR PARTS
AIR
COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR
COMPRESSOR DRYER
AIR
COMPRESSOR DRYER SERVICE
214-428-2868
AIR
COMPRESSOR PARTS
AIR
COMPRESSOR OIL
CURTIS C98 CHECK VALVES, CURTIS C98 PISTONS, CURTIS C98 GASKETS, CURTIS C98 VALVE PLATES, CURTIS C98 RODS, CURTIS C98 HOSES, CURTIS C98 BELTS, CURTIS C98 PISTON RINGS, CURTIS C98 OEM REPLACEMENT PARTS CALL: 214-428-2868
CURTIS MASTER LINE SERIES
| Horizontal | Vertical | CFM @ | |||||
| Model | HP | Pump | Tank Size | Voltage | |||
| Part No. | Part No. | 175PSI | |||||
| ML5 | 5 | FML05D96H8S-A2L1XX | FML05D96V8S-A2L1XX | D96 | 80 | 1/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8S-A9L1XX | FML05D96V8S-A9L1XX | D96 | 80 | 3/60/200-208V | 19.1 |
| ML5 | 5 | FML05D96H8S-A3L1XX | FML05D96V8S-A3L1XX | D96 | 80 | 3/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8S-A4L1XX | FML05D96V8S-A4L1XX | D96 | 80 | 3/60/460V | 19.1 |
| ML7.5 | 7.5 | FML07C79H8S-A2L1XX | FML07C79V8S-A2L1XX | C79 | 80 | 1/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8S-A9L1XX | FML07C79V8S-A9L1XX | C79 | 80 | 3/60/200-208V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8S-A3L1XX | FML07C79V8S-A3L1XX | C79 | 80 | 3/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8S-A4L1XX | FML07C79V8S-A4L1XX | C79 | 80 | 3/60/460V | 28.7 |
| ML10 | 10 | FML10D97H1S-A9L1XX | N/A | D97 | 120 | 3/60/200-208V | 39.8 |
| ML10 | 10 | FML10D97H1S-A3L1XX | N/A | D97 | 120 | 3/60/230V | 39.8 |
| ML10 | 10 | FML10D97H1S-A4L1XX | N/A | D97 | 120 | 3/60/460V | 39.8 |
| ML15 | 15 | FML15D97H1S-A9L1XX | N/A | D97 | 120 | 3/60/200-208V | 49.5 |
| ML15 | 15 | FML15D97H1S-A3L1XX | N/A | D97 | 120 | 3/60/230V | 49.5 |
| ML15 | 15 | FML15D97H1S-A4L1XX | N/A | D97 | 120 | 3/60/460V | 49.5 |
| ML15+ | 15 | FML15C89H1S-A9L1XX | N/A | C89 | 120 | 3/60/200-208V | 55.8 |
| ML15+ | 15 | FML15C89H1S-A3L1XX | N/A | C89 | 120 | 3/60/230V | 55.8 |
| ML15+ | 15 | FML15C89H1S-A4L1XX | N/A | C89 | 120 | 3/60/460V | 55.8 |
| ML20 | 20 | FML20C89H1S-A9L1XX | N/A | C89 | 120 | 3/60/200-208V | 65.1 |
| ML20 | 20 | FML20C89H1S-A3L1XX | N/A | C89 | 120 | 3/60/230V | 65.1 |
| ML20 | 20 | FML20C89H1S-A4L1XX | N/A | C89 | 120 | 3/60/460V | 65.1 |
| ML20+ | 20 | FML20C98H2S-A9L1XX | N/A | C98 | 200 | 3/60/200-208V | 79.3 |
| ML20+ | 20 | FML20C98H2S-A3L1XX | N/A | C98 | 200 | 3/60/230V | 79.3 |
| ML20+ | 20 | FML20C98H2S-A4L1XX | N/A | C98 | 200 | 3/60/460V | 79.3 |
| ML25 | 25 | FML25C98H2S-A9L1XX | N/A | C98 | 200 | 3/60/200-208V | 82.4 |
| ML25 | 25 | FML25C98H2S-A3L1XX | N/A | C98 | 200 | 3/60/230V | 82.4 |
| ML25 | 25 | FML25C98H2S-A4L1XX | N/A | C98 | 200 | 3/60/460V | 82.4 |
| ML30 | 30 | FML30C98H2S-A9L1XX | N/A | C98 | 200 | 3/60/200-208V | 102.2 |
| ML30 | 30 | FML30C98H2S-A3L1XX | N/A | C98 | 200 | 3/60/230V | 102.2 |
| ML30 | 30 | FML30C98H2S-A4L1XX | N/A | C98 | 200 | 3/60/460V | 102.2 |
| ML5 | 5 | FML05D96D1S-A2L1XX | D96 | 120 | 1/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A9L1XX | D96 | 120 | 3/60/200-208V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A3L1XX | D96 | 120 | 3/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A4L1XX | D96 | 120 | 3/60/460V | 38.2 | |
| ML7.5 | 7.5 | FML07C79D1S-A2L1XX | C79 | 120 | 1/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A9L1XX | C79 | 120 | 3/60/200-208V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A3L1XX | C79 | 120 | 3/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A4L1XX | C79 | 120 | 3/60/460V | 57.4 | |
| ML10 | 10 | FML10D97D2S-A9L1XX | D97 | 200 | 3/60/200-208V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2S-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 158.6 | |
| ML25 | 25 | FML25C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML5 | 5 | FML05D96D1S-A2L1XX | D96 | 120 | 1/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A9L1XX | D96 | 120 | 3/60/200-208V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A3L1XX | D96 | 120 | 3/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A4L1XX | D96 | 120 | 3/60/460V | 38.2 | |
| ML7.5 | 7.5 | FML07C79D1S-A2L1XX | C79 | 120 | 1/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A9L1XX | C79 | 120 | 3/60/200-208V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A3L1XX | C79 | 120 | 3/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A4L1XX | C79 | 120 | 3/60/460V | 57.4 | |
| ML10 | 10 | FML10D97D2S-A9L1XX | D97 | 200 | 3/60/200-208V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2S-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 158.6 | |
| ML25 | 25 | FML25C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML10 | 10 | FML10D97D2S-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2S-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 158.6 | |
| ML25 | 25 | FML25C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML5 | 5 | FML05D96H8U-A2L1XX | FML05D96V8U-A2L1XX | D96 | 80 | 1/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8U-A9L1XX | FML05D96V8U-A9L1XX | D96 | 80 | 3/60/200-208V | 19.1 |
| ML5 | 5 | FML05D96H8U-A3L1XX | FML05D96V8U-A3L1XX | D96 | 80 | 3/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8U-A4L2XX | FML05D96V8U-A4L1XX | D96 | 80 | 3/60/460V | 19.1 |
| ML7.5 | 7.5 | FML07C79H8U-A2L1XX | FML07C79V8U-A2L1XX | C79 | 80 | 1/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8U-A9L1XX | FML07C79V8U-A9L1XX | C79 | 80 | 3/60/200-208V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8U-A3L1XX | FML07C79V8U-A3L1XX | C79 | 80 | 3/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8U-A4L1XX | FML07C79V8U-A4L1XX | C79 | 80 | 3/60/460V | 28.7 |
| ML10 | 10 | FML10D97H1U-D9L1XX | --- | D97 | 120 | 3/60/200-208V | 39.8 |
| ML10 | 10 | FML10D97H1U-D3L1XX | --- | D97 | 120 | 3/60/230V | 39.8 |
| ML10 | 10 | FML10D97H1U-D4L1XX | --- | D97 | 120 | 3/60/460V | 39.8 |
| ML15 | 15 | FML15D97H1U-D9L1XX | --- | D97 | 120 | 3/60/200-208V | 49.5 |
| ML15 | 15 | FML15D97H1U-D3L1XX | --- | D97 | 120 | 3/60/230V | 49.5 |
| ML15 | 15 | FML15D97H1U-D4L1XX | --- | D97 | 120 | 3/60/460V | 49.5 |
| ML15+ | 15 | FML15C89H1U-D9L1XX | --- | C89 | 120 | 3/60/200-208V | 55.8 |
| ML15+ | 15 | FML15C89H1U-D3L1XX | --- | C89 | 120 | 3/60/230V | 55.8 |
| ML15+ | 15 | FML15C89H1U-D4L1XX | --- | C89 | 120 | 3/60/460V | 55.8 |
| ML20+ | 20 | FML20C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 79.3 |
| ML25 | 25 | FML25C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 82.4 |
| ML25 | 25 | FML25C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 82.4 |
| ML25 | 25 | FML25C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 82.4 |
| ML30 | 30 | FML30C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 102.2 |
| ML30 | 30 | FML30C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 102.2 |
| ML30 | 30 | FML30C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 102.2 |
| ML20+ | 20 | FML20C98M1U-D9L1XX | C98 | 120 | 3/60/200-208V | 79.3 | |
| ML20+ | 20 | FML20C98M1U-D3L1XX | C98 | 120 | 3/60/230V | 79.3 | |
| ML20+ | 20 | FML20C98M1U-D4L1XX | C98 | 120 | 3/60/460V | 79.3 | |
| ML25 | 25 | FML25C98M1U-D9L1XX | C98 | 120 | 3/60/200-208V | 82.4 | |
| ML25 | 25 | FML25C98M1U-D3L1XX | C98 | 120 | 3/60/230V | 82.4 | |
| ML25 | 25 | FML25C98M1U-D4L1XX | C98 | 120 | 3/60/460V | 82.4 | |
| ML30 | 30 | FML30C98M1U-D9L1XX | C98 | 120 | 3/60/200-208V | 102.2 | |
| ML30 | 30 | FML30C98M1U-D3L1XX | C98 | 120 | 3/60/230V | 102.2 | |
| ML30 | 30 | FML30C98M1U-D4L1XX | C98 | 120 | 3/60/460V | 102.2 | |
| ML5 | 5 | FML05D96D1U-A2L1XX | D96 | 120 | 1/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1U-A9L1XX | D96 | 120 | 3/60/200-208V | 38.2 | |
| ML5 | 5 | FML05D96D1U-A3L1XX | D96 | 120 | 3/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1U-A4L1XX | D96 | 120 | 3/60/460V | 38.2 | |
| ML7.5 | 7.5 | FML07C79D1U-A2L1XX | C79 | 120 | 1/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1U-A9L1XX | C79 | 120 | 3/60/200-208V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1U-A3L1XX | C79 | 120 | 3/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1U-A4L1XX | C79 | 120 | 3/60/460V | 57.4 | |
| ML10 | 10 | FML10D97D2U-A9L1XX | D97 | 200 | 3/60/200-208V | 79.6 | |
| ML10 | 10 | FML10D97D2U-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2U-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2U-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2U-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2U-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4U-A9L1XX | C98 | 240 | 3/60/200-208V | 153 | |
| ML20+ | 20 | FML20C98D4U-A3L1XX | C98 | 240 | 3/60/230V | 153 | |
| ML20+ | 20 | FML20C98D4U-A4L1XX | C98 | 240 | 3/60/460V | 153 | |
| ML25 | 25 | FML25C98D4U-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4U-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4U-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4U-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4U-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4U-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML15+ | 15 | FML15C89H1U-D4L1XX | --- | C89 | 120 | 3/60/460V | 55.8 |
| ML20+ | 20 | FML20C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 79.3 |
| ML25 | 25 | FML25C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 82.4 |
| ML25 | 25 | FML25C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 82.4 |
| ML25 | 25 | FML25C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 82.4 |
| ML30 | 30 | FML30C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 102.2 |
| ML30 | 30 | FML30C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 102.2 |
| ML30 | 30 | FML30C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 102.2 |
| ML5 | 5 | FML05D96BXS-A2L1XX | D96 | N/A | 1/60/230V | 19.1 | |
| ML5 | 5 | FML05D96BXS-A9L1XX | D96 | N/A | 3/60/200-208V | 19.1 | |
| ML5 | 5 | FML05D96BXS-A3L1XX | D96 | N/A | 3/60/230V | 19.1 | |
| ML5 | 5 | FML05D96BXS-A4L1XX | D96 | N/A | 3/60/460V | 19.1 | |
| ML7.5 | 7.5 | FML07C79BXS-A2L1XX | C79 | N/A | 1/60/230V | 28.7 | |
| ML7.5 | 7.5 | FML07C79BXS-A9L1XX | C79 | N/A | 3/60/200-208V | 28.7 | |
| ML7.5 | 7.5 | FML07C79BXS-A3L1XX | C79 | N/A | 3/60/230V | 28.7 | |
| ML7.5 | 7.5 | FML07C79BXS-A4L1XX | C79 | N/A | 3/60/460V | 28.7 | |
| ML10 | 10 | FML10D97BXS-A9L1XX | D97 | N/A | 3/60/200-208V | 39.8 | |
| ML10 | 10 | FML10D97BXS-A3L1XX | D97 | N/A | 3/60/230V | 39.8 | |
| ML10 | 10 | FML10D97BXS-A4L1XX | D97 | N/A | 3/60/460V | 39.8 | |
| ML15 | 15 | FML15D97BXS-A9L1XX | D97 | N/A | 3/60/200-208V | 49.5 | |
| ML15 | 15 | FML15D97BXS-A3L1XX | D97 | N/A | 3/60/230V | 49.5 | |
| ML15 | 15 | FML15D97BXS-A4L1XX | D97 | N/A | 3/60/460V | 49.5 | |
| ML15+ | 15 | FML15C89BXS-A9L1XX | C89 | N/A | 3/60/200-208V | 55.8 | |
| ML15+ | 15 | FML15C89BXS-A3L1XX | C89 | N/A | 3/60/230V | 55.8 | |
| ML15+ | 15 | FML15C89BXS-A4L1XX | C89 | N/A | 3/60/460V | 55.8 | |
| ML20+ | 20 | FML20C98BXS-A9L1XX | C98 | N/A | 3/60/200-208V | 79.3 | |
| ML20+ | 20 | FML20C98BXS-A3L1XX | C98 | N/A | 3/60/230V | 79.3 | |
| ML20+ | 20 | FML20C98BXS-A4L1XX | C98 | N/A | 3/60/460V | 79.3 | |
| ML25 | 25 | FML25C98BXS-A9L1XX | C98 | N/A | 3/60/200-208V | 82.4 | |
| ML25 | 25 | FML25C98BXS-A3L1XX | C98 | N/A | 3/60/230V | 82.4 | |
| ML25 | 25 | FML25C98BXS-A4L1XX | C98 | N/A | 3/60/460V | 82.4 | |
| ML30 | 30 | FML30C98BXS-A9L1XX | C98 | N/A | 3/60/200-208V | 102.2 | |
| ML30 | 30 | FML30C98BXS-A3L1XX | C98 | N/A | 3/60/230V | 102.2 | |
| ML30 | 30 | FML30C98BXS-A4L1XX | C98 | N/A | 3/60/460V | 102.2 |
AIR
COMPRESSOR SERVICE
C98
COMPRESSOR PARTS
CALL FOR PRICES:
214-428-2868
WE DROP SHIP ANYWHERE WITHIN THE USA.
CURTIS C98 PUMP
CURTIS ML SERIES COMPRESSOR PARTS
AIR
COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR
COMPRESSOR DRYER
AIR
COMPRESSOR DRYER SERVICE
214-428-2868
AIR
COMPRESSOR PARTS
AIR
COMPRESSOR OIL
CALL
H&k PUMP FOR SALES AND SERVICE. WE
REBUILD ALL CURTIS COMPRESSOR PUMPS. IN
ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR
WAREHOUSE OR AT THE CORPORATE OFFICE. WE DROP SHIP DIRECTLY TO YOU.
214-428-2868
CURTIS C98 SERVICE KITS
| LPSV SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCDB1317-P | VALVE LP SUCTION | 1 | |
| FCDB1304 | GASKET LOW PRESSURE VALVE | 1 | |
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 4 | |
| FCM657 | GASKET VALVE PLATE C200-300, C98, C100 | 1 | |
| FVA729 | TEE COMP RUN 1/8 NPT X 1/4 OD X 1/4 OD | 1 | |
| FSK-C98LPSV | FCA29948 | SPRING UNLOADER FORK | 1 |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 4 | |
| FRK2063 | NUT STUD REPLACES RK29E | 4 | |
| FVH08KP | SCREW SOCKET HEAD CUP PT 3/8-16 X2 BL OX | 4 | |
| FCBA959 | CYLINDER UNLOADER LP SUCTION VALVE ASSY | 1 | |
| FCBB931 | FORK UNLOADER ASSY | 1 | |
| LPDV SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCDB1318-P | VALVE LP DISCHARGE | 1 | |
| FCM657 | GASKET VALVE PLATE C200-300, C98, C100 | 1 | |
| FCDB1304 | GASKET LOW PRESSURE VALVE | 1 | |
| FSK-C98LPDV | FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 4 |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 4 | |
| FVH08KP | SCREW SOCKET HEAD CUP PT 3/8-16 X2 BL OX | 4 | |
| FRK2063 | NUT STUD REPLACES RK29E | 4 | |
| HPSV SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCMA607-P | VALVE SUCTION ASSY | 1 | |
| FCDB1305 | GASKET HIGH PRESSURE VALVE ALUMINUM | 1 | |
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 3 | |
| FCM656 | GASKET VALVE HIGH PRESS ORDER W/ CM657 | 1 | |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 3 | |
| FSK-C98HPSV | FVH08KN | SCREW HEX HD CUP PT 3/8-16 X 1-3/4 BL OX | 3 |
| FRK2063 | NUT STUD REPLACES RK29E | 3 | |
| FCBB921 | BUFFER ASSY UNLOADER OVER TRAVEL | 1 | |
| FCA29948 | SPRING UNLOADER FORK | 1 | |
| FCBB920 | FORK UNLOADER HIGH PRESS SUCTION VALVE | 1 | |
| FCBB926 | CYLINDER ASSY UNLOADER HP SUCTION VALVE | 1 | |
| HPDV SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCDB1320-P | VALVE DISCHARGE HIGH PRESSURE ASSY C98 | 1 | |
| FCM656 | GASKET VALVE HIGH PRESS ORDER W/ CM657 | 1 | |
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 3 | |
| FSK-C98HPDV | FCDB1305 | GASKET HIGH PRESSURE VALVE ALUMINUM | 1 |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 3 | |
| FVH08KP | SCREW SOCKET HEAD CUP PT 3/8-16 X2 BL OX | 3 | |
| FRK2063 | NUT STUD REPLACES RK29E | 3 |
| GASKET SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCMA620 | GASKET SIDE DOOR | 3 | |
| FCM656 | GASKET VALVE HIGH PRESS ORDER W/ CM657 | 2 | |
| FCM657 | GASKET VALVE PLATE C200-300, C98, C100 | 2 | |
| FCM659 | GASKET INTERCOOLER MANIFOLD | 2 | |
| FCM660 | GASKET CYLINDER HEAD | 1 | |
| FCM665 | GASKET BREATHER COVER ALL ML | 1 | |
| FCX2162 | GASKET CRANKCASE | 1 | |
| FSK-C98GK | FCX2163 | GASKET END PLATE | 1 |
| FVH1224 | WASHER .650 X .958 X .0475 COPPER | 2 | |
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 14 | |
| FCDB1304 | GASKET LOW PRESSURE VALVE | 2 | |
| FCDB1305 | GASKET HIGH PRESSURE VALVE ALUMINUM | 2 | |
| FCA2312A | GASKET/FLANGE COVER PLATE - REPL CA2312 | 1 | |
| FVB416 | O-RING | 1 | |
| FCMA602 | END PLATE SMALL SHIM SET | 1 | |
| FCX2325 | SMALL END PLATE GASKET | 1 | |
| PISTON RING SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCMA631 | RING SET HP PISTON C98 | 1 | |
| FSK-C98RNG | |||
| FCMA630 | RING SET LP PISTON C98 | 1 | |
| ADDITIONAL SERVICE KITS | |||
| 1000 HR SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FSK-C9810SK | FVA1129 | FILTER ELEMENT 2 | 1 |
| FSC-1000QT | OIL FSC-1000 1 QUART RECIP OIL | 6 | |
| REBUILD SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FSK-C98LERK | KIT LOWER END REBUILD C9801 & LATER | 1 | |
| FVA1129 | FILTER ELEMENT 2 | 1 | |
| FSK-C98RK | FSK-C98LPSV | KIT, VALVE REPLACEMENT C98 L.P.S.V. | 1 |
| FSK-C98LPDV | KIT, VALVE REPLACEMENT C98 L.P.D.V. | 1 | |
| FSK-C98HPSV | KIT, VALVE REPLACEMENT C98 H.P.S.V. | 1 | |
| FSK-C98HPDV | KIT, VALVE REPLACEMENT C98 H.P.D.V. | 1 | |
| LOWER END REBUILD SERVICE KIT | |||
| KIT NUMBER | PARTS | DESCRIPTION | QTY |
| FCMA631 | RING SET HP PISTON C98 | 1 | |
| FCMA630 | RING SET LP PISTON C98 | 1 | |
| FSK-C98LERK | FVD840 | BEARING PISTON PIN (BUSHING) | 4 |
| FVH12NU | SCREW HEX HD 1/2-20UNF X 3-1/4 GR5 ZN PL | 4 | |
| FVH35P1 | LOCKWASHER LIGHT 1/2 ZINC PLATED | 4 | |
| FVH15P1 | NUT HEX 1/2-13UNC ZINC GRADE A ZN PLATED | 4 | |
| FSK-C98GK | KIT SERVICE GASKET SET | 1 | |
| FCM606 | CONNECTING ROD BEARINGS SET | 2 |
AIR
COMPRESSOR SERVICE
C98
COMPRESSOR PARTS
CALL FOR PRICES:
214-428-2868
WE DROP SHIP ANYWHERE WITHIN THE USA.
CURTIS C98 PUMP
CURTIS C98 SERVICE KITS
CURTIS ML SERIES COMPRESSOR PARTS
AIR
COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR
COMPRESSOR DRYER
AIR
COMPRESSOR DRYER SERVICE
214-428-2868
AIR
COMPRESSOR PARTS
AIR
COMPRESSOR OIL
CALL
H&k PUMP FOR SALES AND SERVICE. WE
REBUILD ALL CURTIS COMPRESSOR PUMPS. IN
ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR
WAREHOUSE OR AT THE CORPORATE OFFICE. WE DROP SHIP DIRECTLY TO YOU.
214-428-2868
| PARTS LIST - CYLINDER HEAD | ||
| DESCRIPTION | Q | PART NUMBER |
| CYLINDER HEAD, LOT C9856 | 1 | FCMA613W |
| GASKET, L.P. VALVE | 2 | FCDB1304 |
| LP SUCTION VALVE | 1 | FCDB1317-P |
| SPRING 0.08 DIA X 1 3/8 X 1"OD | 2 | FCA29948 |
| UNLOADER FORK ASSEMBLY | 1 | FCBB931 |
| SPACER - LOW PRESSURE | 2 | 2601039570 |
| LP VALVE COVER PLATE GASKET | 2 | FCM657 |
| LPSV COVERPLATE | 1 | 2601039550 |
| WASHER ALUMINUM 9/16 | 14 | FVH1232 |
| NUT-STUD | 14 | FRK2063 |
| HHCS 1/2-13UNC X 1.325 | 14 | FVH12PL |
| L P S V UNLOADER CYLINDER ASSM | 1 | FCBB959 |
| SCREW-3/8 X 1.75 HEX.-SOC. HEAD | 11 | FVH08KP |
| PLATE - LPDV COVER | 1 | 2601039590 |
| LP DISCHARGE VALVE | 1 | FCDB1318-P |
| HP DISCHARGE VALVE | 1 | FCDB1320-P |
| SPACER-HIGH PRESSURE | 2 | FCMA730 |
| GASKET-VALVE PLATE-H.P. | 2 | FCM656 |
| HP DISCHARGE VALVE COVER PLATE | 1 | 2601039630 |
| GASKET, H.P. VALVE ALUMINUM | 2 | FCDB1305 |
| HP SUCTION VALVE | 1 | FCMA607-P |
| FORK-UNLOADING-H.P.S.V. | 1 | FCBB920 |
| BUFFER ASSEMBLY-UNLOADER OVERTRAVEL | 1 | FCBB921 |
| HIGH PRESURE SUCTION VALVE COVER PLATE | 1 | 2601039600 |
| SCREW - SET HEX HEAD, CUP PT 3/8 X 1 3/4"LG | 3 | FVH08KN |
| CYLINDER ASSEMBLY/UNLOADER H.P.S.V. | 1 | FCBB926 |
| NIPPLE-BLACK 2 X 8 5/8 T B E SEAMLESS | 1 | FCM614 |
| MANIFOLD CONNECTION | 1 | 2601494160 |
| COMP MALE ELBOW90 1/4NPT X 1/4 OD BRASS | 1 | FVA15BCE |
| TUBE, COPPER UNLOADER | 1 | FCBA996 |
| COMPRESSION RUN TEE, 1/4 OD X 1/8NPT | 1 | FVA729 |
| STUD-CYLINDER HEAD | 9 | FCMA652 |
| PARTS LISTS - L.P. PISTON | |||
| DESCRIPTION | PART NUMBER | ||
| CONNECTING ROD | FCDB1300 | ||
| BEARING-NEEDLE-ROLLER | FVD840 | ||
| L.P. PISTON | FCDB1313 | ||
| L.P. PISTON PIN | FCDB1315 | ||
| ROLL PIN 3/8 DIA X 3/4 LG | FVH25MF | ||
| SET, CONN ROD BEARING | FCM606 | ||
| HHCS 1/2-20UNF X 3 1/4 GRADE 5 | *FVH12NU | ||
| LOCKWASHER, 1/2" ZINC | FVH35P1 | ||
| NUT HEX 1/2''-13 ZINC PLATED | *FVH15N | ||
| RING LP | FCAD25313B | ||
| EXPANDER-OIL RING | FCAD25313A | ||
| RING-REVERSE TWIST-COMP. | FCAD25513 | ||
| RING-BARREL FACE | FCAD25613 | ||
| PISTON RING-REVERSE TWIST |
FCAD258
|
||
| PARTS LIST - H.P. PISTON | |||
| DESCRIPTION | PART NUMBER | ||
| CONNECTING ROD C98A COMPRESSOR | FCDB1300 | ||
| BEARING-NEEDLE-ROLLER | FVD840 | ||
| H.P. PISTON | FCDB1312 | ||
| H.P. PISTON PIN | FCDB1314 | ||
| PIN-SELF LOC 1/4 X 11/16 | FVH1312 | ||
| SET, CONN ROD BEARING | FCM606 | ||
| HHCS 1/2-20UNF X 3 1/4 GRADE 5 | *FVH12NU | ||
| LOCKWASHER, 1/2" ZINC | FVH35P1 | ||
| NUT HEX 1/2''-13 ZINC PLATED | *FVH15N | ||
| RAIL- 4.1875 X .024 | FCAD2537B | ||
| EXPANDER-4.1875 X .104 | FCAD2537A | ||
| RING-REVERSE TWIST | FCAD2557 | ||
| RING-BARREL FACE-COMPRESSION | FCAD2567 |
CURTIS C98 CHECK VALVES, CURTIS C98 PISTONS, CURTIS C98 GASKETS, CURTIS C98 VALVE PLATES, CURTIS C98 RODS, CURTIS C98 HOSES, CURTIS C98 BELTS, CURTIS C98 PISTON RINGS, CURTIS C98 OEM REPLACEMENT PARTS CALL: 214-428-2868
C98 INNER AND AFTER COOLERS
| PARTS LIST - GENERAL ASSEMBLY | ||
| DESCRIPTION | PART NUMBER | |
| CRANKSHAFT | FCMA657 | |
| CONE-BEARING | FVD850 | |
| CONE-BEARING-FLYWHEEL SIDE | FVD851 | |
| C98 CRANKCASE | FCDB1306 | |
| CUP-BEARING | - | |
| SHIM/BLUE .005 THICK | FVB1204 | |
| SHIM/TRANSPARENT .007 THICK | FVB1205 | |
| SHIM/YELLOW .020 THICK | FVB1206 | |
| END PLATE | 2601039690 | |
| HHCS 1/2-13UNC X 1 .5 | FVH12PM1 | |
| GASKET, FLANGE COVER PLATE | FCA2312A | |
| LOW OIL GUARD COVER | FCA2323 | |
| LOCKWASHER 1/4'' | FVH35F1 | |
| HHCS 1/4-20 X 1/2" GR 5, ZINC | FVH12FD1 | |
| OIL RING GUIDE PIN | FCX2123 | |
| CUP-BEARING | - | |
| C98 LARGE END PLATE GASKET | FCX2163 | |
| LARGE END PLATE | 2601039670 | |
| OIL SEAL | FVB312 | |
| NUT-FLEX LOC-HEX 5/16"-18 X 5/16" | FVH20H | |
| COTTER- 1/8 X 1 | FVH23DH | |
| C98 CYLINDER TO CRANKCASE GASKET | FCX2162 | |
| CYLINDER | 2689020610 | |
| SCREW-HX. HEAD CAP 3/4 X 1 3/4" GRADE 2 | FVH11TN | |
| H.P. PISTON ASSEMBLY | - | |
| RING-OILING 8 9/16 X 5/16 | FCM679 | |
| C98 CYLINDER HEAD GASKET | FCM660 | |
| L.P. PISTON ASSEMBLY | - | |
| NUT HEX 5/8-11 ZINC PLATED | FVH15R1 | |
| SIDE DOOR GASKET, C98 | FCMA620 | |
| C98 BAFFLE PLATE | FCMA619 | |
| C98 BREATHER SIDE DOOR | 2601039720 | |
| SCREW-HEX HEAD-CAP 3/8 X 1 1/4 | FVH12KK1 | |
| BREATHER VALVE (SIDE DOOR) | FCM664 | |
| C98 HEAD CYLINDER ASSEMBLY | - | |
| GASKET-BREATHER COVER | FCM665 | |
| FHMS10/32 X 3/8 | FVH01CC | |
| BREATHER COVER | FCM663 | |
| C98 OIL FILL SIDE DOOR | FCDB1308 | |
| PLUG SQ HEAD 3/4 NPT CI BLACK | FPTP05AG | |
| O-RING | FVB416 | |
| C98 Air Filter Assembly | FVA1128 | |
| C98 INTERCOOLER MANIFOLD GASKET | FCM659 | |
| C98 COOLING SYSTEM ASSEMBLY | - | |
| HHCS, 3/8-16 X 1-1/2 ASTM A307 ZINC | FVH11KM1 | |
| HHCS 5/8-11UNC X 6 1/2 | FVH1658 | |
| FLYWHEEL | 2689230010 | |
| FLYWHEEL KEY 9/16 X 9/16 X 4 | FCMA665 | |
| LOCKWASHER | FCW222-1 | |
| NUT, CRANKSHAFT (CX9BG) | FCX225-2 | |
| INTERCOOLER SPACER | FCMA635 | |
| BAFFLE ASSEMBLY | FCW2365 | |
| INTERCOOLER BOTTOM CLAMP | FCMA636 | |
| SCREW-HEX HEAD CAP 5/16 X 5 | FVH11HZ | |
| DIPSTICK ASSEMBLY | FCDB1309 | |
| INTERCOOLER TOP CLAMP | FCMA634 | |
| LOCKWASHER 3/8" ZINC PLATED | FVH35K1 | |
| SCREW-MACHINE 10/32 X 3/8 | FVH01CC | |
| WASHER, COPPER | FVH1224 | |
| SCREW-HEX HEAD-CAP 3/8 X 3/4 | FVH11KF |
AIR
COMPRESSOR SERVICE
C98
COMPRESSOR PARTS
CALL FOR PRICES:
214-428-2868
WE DROP SHIP ANYWHERE WITHIN THE USA.
CURTIS C98 PUMP
CURTIS C98 SERVICE KITS
CURTIS ML SERIES COMPRESSOR PARTS
AIR
COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR
COMPRESSOR DRYER
AIR
COMPRESSOR DRYER SERVICE
214-428-2868
AIR
COMPRESSOR PARTS
AIR
COMPRESSOR OIL
AIR
COMPRESSOR SERVICE
E15C
COMPRESSOR PARTS
CURTIS C89 PUMP
CURTIS C98 PUMP
CURTIS ML SERIES COMPRESSOR PARTS
AIR
COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR
COMPRESSOR DRYER
AIR
COMPRESSOR DRYER SERVICE
214-428-2868
AIR
COMPRESSOR PARTS
AIR
COMPRESSOR OIL
CALL
H&k PUMP FOR SALES AND SERVICE. WE
REBUILD ALL CURTIS COMPRESSOR PUMPS. IN
ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR
WAREHOUSE OR AT THE CORPORATE OFFICE. WE DROP SHIP DIRECTLY TO YOU.
214-428-2868
C98 PUMP (CURTIS ML SERIES...20HP..25HP....30HP)
| Horizontal | Vertical | CFM @ | |||||
| Model | HP | Pump | Tank Size | Voltage | |||
| Part No. | Part No. | 175PSI | |||||
| ML5 | 5 | FML05D96H8S-A2L1XX | FML05D96V8S-A2L1XX | D96 | 80 | 1/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8S-A9L1XX | FML05D96V8S-A9L1XX | D96 | 80 | 3/60/200-208V | 19.1 |
| ML5 | 5 | FML05D96H8S-A3L1XX | FML05D96V8S-A3L1XX | D96 | 80 | 3/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8S-A4L1XX | FML05D96V8S-A4L1XX | D96 | 80 | 3/60/460V | 19.1 |
| ML7.5 | 7.5 | FML07C79H8S-A2L1XX | FML07C79V8S-A2L1XX | C79 | 80 | 1/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8S-A9L1XX | FML07C79V8S-A9L1XX | C79 | 80 | 3/60/200-208V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8S-A3L1XX | FML07C79V8S-A3L1XX | C79 | 80 | 3/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8S-A4L1XX | FML07C79V8S-A4L1XX | C79 | 80 | 3/60/460V | 28.7 |
| ML10 | 10 | FML10D97H1S-A9L1XX | N/A | D97 | 120 | 3/60/200-208V | 39.8 |
| ML10 | 10 | FML10D97H1S-A3L1XX | N/A | D97 | 120 | 3/60/230V | 39.8 |
| ML10 | 10 | FML10D97H1S-A4L1XX | N/A | D97 | 120 | 3/60/460V | 39.8 |
| ML15 | 15 | FML15D97H1S-A9L1XX | N/A | D97 | 120 | 3/60/200-208V | 49.5 |
| ML15 | 15 | FML15D97H1S-A3L1XX | N/A | D97 | 120 | 3/60/230V | 49.5 |
| ML15 | 15 | FML15D97H1S-A4L1XX | N/A | D97 | 120 | 3/60/460V | 49.5 |
| ML15+ | 15 | FML15C89H1S-A9L1XX | N/A | C89 | 120 | 3/60/200-208V | 55.8 |
| ML15+ | 15 | FML15C89H1S-A3L1XX | N/A | C89 | 120 | 3/60/230V | 55.8 |
| ML15+ | 15 | FML15C89H1S-A4L1XX | N/A | C89 | 120 | 3/60/460V | 55.8 |
| ML20 | 20 | FML20C89H1S-A9L1XX | N/A | C89 | 120 | 3/60/200-208V | 65.1 |
| ML20 | 20 | FML20C89H1S-A3L1XX | N/A | C89 | 120 | 3/60/230V | 65.1 |
| ML20 | 20 | FML20C89H1S-A4L1XX | N/A | C89 | 120 | 3/60/460V | 65.1 |
| ML20+ | 20 | FML20C98H2S-A9L1XX | N/A | C98 | 200 | 3/60/200-208V | 79.3 |
| ML20+ | 20 | FML20C98H2S-A3L1XX | N/A | C98 | 200 | 3/60/230V | 79.3 |
| ML20+ | 20 | FML20C98H2S-A4L1XX | N/A | C98 | 200 | 3/60/460V | 79.3 |
| ML25 | 25 | FML25C98H2S-A9L1XX | N/A | C98 | 200 | 3/60/200-208V | 82.4 |
| ML25 | 25 | FML25C98H2S-A3L1XX | N/A | C98 | 200 | 3/60/230V | 82.4 |
| ML25 | 25 | FML25C98H2S-A4L1XX | N/A | C98 | 200 | 3/60/460V | 82.4 |
| ML30 | 30 | FML30C98H2S-A9L1XX | N/A | C98 | 200 | 3/60/200-208V | 102.2 |
| ML30 | 30 | FML30C98H2S-A3L1XX | N/A | C98 | 200 | 3/60/230V | 102.2 |
| ML30 | 30 | FML30C98H2S-A4L1XX | N/A | C98 | 200 | 3/60/460V | 102.2 |
| ML5 | 5 | FML05D96D1S-A2L1XX | D96 | 120 | 1/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A9L1XX | D96 | 120 | 3/60/200-208V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A3L1XX | D96 | 120 | 3/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A4L1XX | D96 | 120 | 3/60/460V | 38.2 | |
| ML7.5 | 7.5 | FML07C79D1S-A2L1XX | C79 | 120 | 1/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A9L1XX | C79 | 120 | 3/60/200-208V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A3L1XX | C79 | 120 | 3/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A4L1XX | C79 | 120 | 3/60/460V | 57.4 | |
| ML10 | 10 | FML10D97D2S-A9L1XX | D97 | 200 | 3/60/200-208V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2S-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 158.6 | |
| ML25 | 25 | FML25C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML5 | 5 | FML05D96D1S-A2L1XX | D96 | 120 | 1/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A9L1XX | D96 | 120 | 3/60/200-208V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A3L1XX | D96 | 120 | 3/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1S-A4L1XX | D96 | 120 | 3/60/460V | 38.2 | |
| ML7.5 | 7.5 | FML07C79D1S-A2L1XX | C79 | 120 | 1/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A9L1XX | C79 | 120 | 3/60/200-208V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A3L1XX | C79 | 120 | 3/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1S-A4L1XX | C79 | 120 | 3/60/460V | 57.4 | |
| ML10 | 10 | FML10D97D2S-A9L1XX | D97 | 200 | 3/60/200-208V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2S-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 158.6 | |
| ML25 | 25 | FML25C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML10 | 10 | FML10D97D2S-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2S-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2S-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2S-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 158.6 | |
| ML20+ | 20 | FML20C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 158.6 | |
| ML25 | 25 | FML25C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4S-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4S-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML5 | 5 | FML05D96H8U-A2L1XX | FML05D96V8U-A2L1XX | D96 | 80 | 1/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8U-A9L1XX | FML05D96V8U-A9L1XX | D96 | 80 | 3/60/200-208V | 19.1 |
| ML5 | 5 | FML05D96H8U-A3L1XX | FML05D96V8U-A3L1XX | D96 | 80 | 3/60/230V | 19.1 |
| ML5 | 5 | FML05D96H8U-A4L2XX | FML05D96V8U-A4L1XX | D96 | 80 | 3/60/460V | 19.1 |
| ML7.5 | 7.5 | FML07C79H8U-A2L1XX | FML07C79V8U-A2L1XX | C79 | 80 | 1/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8U-A9L1XX | FML07C79V8U-A9L1XX | C79 | 80 | 3/60/200-208V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8U-A3L1XX | FML07C79V8U-A3L1XX | C79 | 80 | 3/60/230V | 28.7 |
| ML7.5 | 7.5 | FML07C79H8U-A4L1XX | FML07C79V8U-A4L1XX | C79 | 80 | 3/60/460V | 28.7 |
| ML10 | 10 | FML10D97H1U-D9L1XX | --- | D97 | 120 | 3/60/200-208V | 39.8 |
| ML10 | 10 | FML10D97H1U-D3L1XX | --- | D97 | 120 | 3/60/230V | 39.8 |
| ML10 | 10 | FML10D97H1U-D4L1XX | --- | D97 | 120 | 3/60/460V | 39.8 |
| ML15 | 15 | FML15D97H1U-D9L1XX | --- | D97 | 120 | 3/60/200-208V | 49.5 |
| ML15 | 15 | FML15D97H1U-D3L1XX | --- | D97 | 120 | 3/60/230V | 49.5 |
| ML15 | 15 | FML15D97H1U-D4L1XX | --- | D97 | 120 | 3/60/460V | 49.5 |
| ML15+ | 15 | FML15C89H1U-D9L1XX | --- | C89 | 120 | 3/60/200-208V | 55.8 |
| ML15+ | 15 | FML15C89H1U-D3L1XX | --- | C89 | 120 | 3/60/230V | 55.8 |
| ML15+ | 15 | FML15C89H1U-D4L1XX | --- | C89 | 120 | 3/60/460V | 55.8 |
| ML20+ | 20 | FML20C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 79.3 |
| ML25 | 25 | FML25C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 82.4 |
| ML25 | 25 | FML25C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 82.4 |
| ML25 | 25 | FML25C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 82.4 |
| ML30 | 30 | FML30C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 102.2 |
| ML30 | 30 | FML30C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 102.2 |
| ML30 | 30 | FML30C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 102.2 |
| ML20+ | 20 | FML20C98M1U-D9L1XX | C98 | 120 | 3/60/200-208V | 79.3 | |
| ML20+ | 20 | FML20C98M1U-D3L1XX | C98 | 120 | 3/60/230V | 79.3 | |
| ML20+ | 20 | FML20C98M1U-D4L1XX | C98 | 120 | 3/60/460V | 79.3 | |
| ML25 | 25 | FML25C98M1U-D9L1XX | C98 | 120 | 3/60/200-208V | 82.4 | |
| ML25 | 25 | FML25C98M1U-D3L1XX | C98 | 120 | 3/60/230V | 82.4 | |
| ML25 | 25 | FML25C98M1U-D4L1XX | C98 | 120 | 3/60/460V | 82.4 | |
| ML30 | 30 | FML30C98M1U-D9L1XX | C98 | 120 | 3/60/200-208V | 102.2 | |
| ML30 | 30 | FML30C98M1U-D3L1XX | C98 | 120 | 3/60/230V | 102.2 | |
| ML30 | 30 | FML30C98M1U-D4L1XX | C98 | 120 | 3/60/460V | 102.2 | |
| ML5 | 5 | FML05D96D1U-A2L1XX | D96 | 120 | 1/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1U-A9L1XX | D96 | 120 | 3/60/200-208V | 38.2 | |
| ML5 | 5 | FML05D96D1U-A3L1XX | D96 | 120 | 3/60/230V | 38.2 | |
| ML5 | 5 | FML05D96D1U-A4L1XX | D96 | 120 | 3/60/460V | 38.2 | |
| ML7.5 | 7.5 | FML07C79D1U-A2L1XX | C79 | 120 | 1/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1U-A9L1XX | C79 | 120 | 3/60/200-208V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1U-A3L1XX | C79 | 120 | 3/60/230V | 57.4 | |
| ML7.5 | 7.5 | FML07C79D1U-A4L1XX | C79 | 120 | 3/60/460V | 57.4 | |
| ML10 | 10 | FML10D97D2U-A9L1XX | D97 | 200 | 3/60/200-208V | 79.6 | |
| ML10 | 10 | FML10D97D2U-A3L1XX | D97 | 200 | 3/60/230V | 79.6 | |
| ML10 | 10 | FML10D97D2U-A4L1XX | D97 | 200 | 3/60/460V | 79.6 | |
| ML15+ | 15 | FML15C89D2U-A9L1XX | C89 | 200 | 3/60/200-208V | 111.6 | |
| ML15+ | 15 | FML15C89D2U-A3L1XX | C89 | 200 | 3/60/230V | 111.6 | |
| ML15+ | 15 | FML15C89D2U-A4L1XX | C89 | 200 | 3/60/460V | 111.6 | |
| ML20+ | 20 | FML20C98D4U-A9L1XX | C98 | 240 | 3/60/200-208V | 153 | |
| ML20+ | 20 | FML20C98D4U-A3L1XX | C98 | 240 | 3/60/230V | 153 | |
| ML20+ | 20 | FML20C98D4U-A4L1XX | C98 | 240 | 3/60/460V | 153 | |
| ML25 | 25 | FML25C98D4U-A9L1XX | C98 | 240 | 3/60/200-208V | 164.8 | |
| ML25 | 25 | FML25C98D4U-A3L1XX | C98 | 240 | 3/60/230V | 164.8 | |
| ML25 | 25 | FML25C98D4U-A4L1XX | C98 | 240 | 3/60/460V | 164.8 | |
| ML30 | 30 | FML30C98D4U-A9L1XX | C98 | 240 | 3/60/200-208V | 204.4 | |
| ML30 | 30 | FML30C98D4U-A3L1XX | C98 | 240 | 3/60/230V | 204.4 | |
| ML30 | 30 | FML30C98D4U-A4L1XX | C98 | 240 | 3/60/460V | 204.4 | |
| ML15+ | 15 | FML15C89H1U-D4L1XX | --- | C89 | 120 | 3/60/460V | 55.8 |
| ML20+ | 20 | FML20C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 79.3 |
| ML20+ | 20 | FML20C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 79.3 |
| ML25 | 25 | FML25C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 82.4 |
| ML25 | 25 | FML25C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 82.4 |
| ML25 | 25 | FML25C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 82.4 |
| ML30 | 30 | FML30C98H2U-D9L1XX | --- | C98 | 200 | 3/60/200-208V | 102.2 |
| ML30 | 30 | FML30C98H2U-D3L1XX | --- | C98 | 200 | 3/60/230V | 102.2 |
| ML30 | 30 | FML30C98H2U-D4L1XX | --- | C98 | 200 | 3/60/460V | 102.2 |
| ML5 | 5 | FML05D96BXS-A2L1XX | D96 | N/A | 1/60/230V | 19.1 | |
| ML5 | 5 | FML05D96BXS-A9L1XX | D96 | N/A | 3/60/200-208V | 19.1 | |
| ML5 | 5 | FML05D96BXS-A3L1XX | D96 | N/A | 3/60/230V | 19.1 | |
| ML5 | 5 | FML05D96BXS-A4L1XX | D96 | N/A | 3/60/460V | 19.1 | |
| ML7.5 | 7.5 | FML07C79BXS-A2L1XX | C79 | N/A | 1/60/230V | 28.7 | |
| ML7.5 | 7.5 | FML07C79BXS-A9L1XX | C79 | N/A | 3/60/200-208V | 28.7 | |
| ML7.5 | 7.5 | FML07C79BXS-A3L1XX | C79 | N/A | 3/60/230V | 28.7 | |
| ML7.5 | 7.5 | FML07C79BXS-A4L1XX | C79 | N/A | 3/60/460V | 28.7 | |
| ML10 | 10 | FML10D97BXS-A9L1XX | D97 | N/A | 3/60/200-208V | 39.8 | |
| ML10 | 10 | FML10D97BXS-A3L1XX | D97 | N/A | 3/60/230V | 39.8 | |
| ML10 | 10 | FML10D97BXS-A4L1XX | D97 | N/A | 3/60/460V | 39.8 | |
| ML15 | 15 | FML15D97BXS-A9L1XX | D97 | N/A | 3/60/200-208V | 49.5 | |
| ML15 | 15 | FML15D97BXS-A3L1XX | D97 | N/A | 3/60/230V | 49.5 | |
| ML15 | 15 | FML15D97BXS-A4L1XX | D97 | N/A | 3/60/460V | 49.5 | |
| ML15+ | 15 | FML15C89BXS-A9L1XX | C89 | N/A | 3/60/200-208V | 55.8 | |
| ML15+ | 15 | FML15C89BXS-A3L1XX | C89 | N/A | 3/60/230V | 55.8 | |
| ML15+ | 15 | FML15C89BXS-A4L1XX | C89 | N/A | 3/60/460V | 55.8 | |
| ML20+ | 20 | FML20C98BXS-A9L1XX | C98 | N/A | 3/60/200-208V | 79.3 | |
| ML20+ | 20 | FML20C98BXS-A3L1XX | C98 | N/A | 3/60/230V | 79.3 | |
| ML20+ | 20 | FML20C98BXS-A4L1XX | C98 | N/A | 3/60/460V | 79.3 | |
| ML25 | 25 | FML25C98BXS-A9L1XX | C98 | N/A | 3/60/200-208V | 82.4 | |
| ML25 | 25 | FML25C98BXS-A3L1XX | C98 | N/A | 3/60/230V | 82.4 | |
| ML25 | 25 | FML25C98BXS-A4L1XX | C98 | N/A | 3/60/460V | 82.4 | |
| ML30 | 30 | FML30C98BXS-A9L1XX | C98 | N/A | 3/60/200-208V | 102.2 | |
| ML30 | 30 | FML30C98BXS-A3L1XX | C98 | N/A | 3/60/230V | 102.2 | |
| ML30 | 30 | FML30C98BXS-A4L1XX | C98 | N/A | 3/60/460V | 102.2 |
CALL FOR PRICES:
214-428-2868
WE DROP SHIP ANYWHERE WITHIN THE USA.
| PARTS LIST - GENERAL ASSEMBLY | ||||
| ITEM NO | DESCRIPTION | Q | PART NUMBER | NOTES |
| 1 | CRANKSHAFT | 1 | FCMA657 | |
| 2 | CONE-BEARING | 1 | FVD850 | |
| 3 | CONE-BEARING-FLYWHEEL SIDE | 1 | FVD851 | |
| 4 | C98 CRANKCASE | 1 | FCDB1306 | |
| 5 | CUP-BEARING | 1 | - | *INCL. WITH ITEM #2 |
| 6 | SHIM/BLUE .005 THICK | 1 | FVB1204 | |
| 7 | SHIM/TRANSPARENT .007 THICK | 1 | FVB1205 | |
| 8 | SHIM/YELLOW .020 THICK | 1 | FVB1206 | |
| 9 | END PLATE | 1 | 2601039690 | |
| 10 | HHCS 1/2-13UNC X 1 .5 | 12 | FVH12PM1 | |
| 11 | GASKET, FLANGE COVER PLATE | 1 | FCA2312A | |
| 12 | LOW OIL GUARD COVER | 1 | FCA2323 | |
| 13 | LOCKWASHER 1/4'' | 6 | FVH35F1 | |
| 14 | HHCS 1/4-20 X 1/2" GR 5, ZINC | 2 | FVH12FD1 | |
| 15 | OIL RING GUIDE PIN | 1 | FCX2123 | |
| 16 | CUP-BEARING | 1 | - | *INCL. WITH ITEM #3 |
| 17 | C98 LARGE END PLATE GASKET | 1 | FCX2163 | |
| 18 | LARGE END PLATE | 1 | 2601039670 | |
| 19 | OIL SEAL | 1 | FVB312 | |
| 20 | NUT-FLEX LOC-HEX 5/16"-18 X 5/16" | 1 | FVH20H | |
| 21 | COTTER- 1/8 X 1 | 2 | FVH23DH | |
| 22 | C98 CYLINDER TO CRANKCASE GASKET | 1 | FCX2162 | |
| 23 | CYLINDER | 1 | 2689020610 | |
| 24 | SCREW-HX. HEAD CAP 3/4 X 1 3/4" GRADE 2 | 6 | FVH11TN | |
| 25 | H.P. PISTON ASSEMBLY | 1 | - | *SEE STEP #14 |
| 26 | RING-OILING 8 9/16 X 5/16 | 1 | FCM679 | |
| 35 | C98 HEAD CYLINDER ASSEMBLY | 1 | - | *SEE STEPS #8-12 |
| 36 | GASKET-BREATHER COVER | 1 | FCM665 | |
| 37 | FHMS10/32 X 3/8 | 4 | FVH01CC | |
| 38 | BREATHER COVER | 1 | FCM663 | |
| 39 | C98 OIL FILL SIDE DOOR | 1 | FCDB1308 | |
| 40 | PLUG SQ HEAD 3/4 NPT CI BLACK | 1 | FPTP05AG | |
| 41 | O-RING | 1 | FVB416 | |
| 42 | C98 Air Filter Assembly | 1 | FVA1128 | |
| 43 | C98 INTERCOOLER MANIFOLD GASKET | 2 | FCM659 | |
| 44 | C98 COOLING SYSTEM ASSEMBLY | 1 | - | |
| 45 | HHCS, 3/8-16 X 1-1/2 ASTM A307 ZINC | 4 | FVH11KM1 | |
| 46 | HHCS 5/8-11UNC X 6 1/2 | 2 | FVH1658 | |
| 47 | FLYWHEEL | 1 | 2689230010 | |
| 48 | FLYWHEEL KEY 9/16 X 9/16 X 4 | 1 | FCMA665 | |
| 49 | LOCKWASHER | 1 | FCW222-1 | |
| 50 | NUT, CRANKSHAFT (CX9BG) | 1 | FCX225-2 | |
| 51 | INTERCOOLER SPACER | 1 | FCMA635 | |
| 52 | BAFFLE ASSEMBLY | 2 | FCW2365 | |
| 53 | INTERCOOLER BOTTOM CLAMP | 1 | FCMA636 | |
| 54 | SCREW-HEX HEAD CAP 5/16 X 5 | 1 | FVH11HZ | |
| 55 | DIPSTICK ASSEMBLY | 1 | FCDB1309 | |
| 56 | INTERCOOLER TOP CLAMP | 1 | FCMA634 | |
| 57 | LOCKWASHER 3/8" ZINC PLATED | 1 | FVH35K1 | |
| 58 | SCREW-MACHINE 10/32 X 3/8 | 4 | FVH01CC | |
| 59 | WASHER, COPPER | 2 | FVH1224 | |
| 60 | SCREW-HEX HEAD-CAP 3/8 X 3/4 | 1 | FVH11KF | |
| 1 | CONNECTING ROD | 1 | FCDB1300 | |
| 2 | BEARING-NEEDLE-ROLLER | 2 | FVD840 | |
| 3 | L.P. PISTON | 1 | FCDB1313 | |
| 4 | L.P. PISTON PIN | 1 | FCDB1315 | |
| 5 | ROLL PIN 3/8 DIA X 3/4 LG | 1 | FVH25MF | |
| 6 | SET, CONN ROD BEARING | 1 | FCM606 | |
| 7 | HHCS 1/2-20UNF X 3 1/4 GRADE 5 | 2 | *FVH12NU | |
| 8 | LOCKWASHER, 1/2" ZINC | 2 | FVH35P1 | |
| 9 | NUT HEX 1/2''-13 ZINC PLATED | 2 | *FVH15N | |
| 10 | RING LP | 2 | FCAD25313B | |
| 11 | EXPANDER-OIL RING | 1 | FCAD25313A | |
| 12 | RING-REVERSE TWIST-COMP. | 1 | FCAD25513 | |
| 13 | RING-BARREL FACE | 1 | FCAD25613 | |
| 14 | PISTON RING-REVERSE TWIST | 1 | FCAD258 | |
| 1 | CYLINDER HEAD, LOT C9856 | 1 | FCMA613W | |
| 2 | GASKET, L.P. VALVE | 2 | FCDB1304 | |
| 3 | LP SUCTION VALVE | 1 | FCDB1317-P | *IN KIT FSK-C98LPSV |
| 4 | SPRING 0.08 DIA X 1 3/8 X 1"OD | 2 | FCA29948 | |
| 5 | UNLOADER FORK ASSEMBLY | 1 | FCBB931 | |
| 6 | SPACER - LOW PRESSURE | 2 | 2601039570 | |
| 7 | LP VALVE COVER PLATE GASKET | 2 | FCM657 | |
| 8 | LPSV COVERPLATE | 1 | 2601039550 | |
| 9 | WASHER ALUMINUM 9/16 | 14 | FVH1232 | |
| 10 | NUT-STUD | 14 | FRK2063 | |
| 11 | HHCS 1/2-13UNC X 1.325 | 14 | FVH12PL | |
| 12 | L P S V UNLOADER CYLINDER ASSM | 1 | FCBB959 | |
| 13 | SCREW-3/8 X 1.75 HEX.-SOC. HEAD | 11 | FVH08KP | |
| 14 | PLATE - LPDV COVER | 1 | 2601039590 | |
| 15 | LP DISCHARGE VALVE | 1 | FCDB1318-P | *IN KIT FSK-C98LPDV |
| 16 | HP DISCHARGE VALVE | 1 | FCDB1320-P | *IN KIT FSK-C98HPDV |
| 17 | SPACER-HIGH PRESSURE | 2 | FCMA730 | |
| 18 | GASKET-VALVE PLATE-H.P. | 2 | FCM656 | |
| 19 | HP DISCHARGE VALVE COVER PLATE | 1 | 2601039630 | |
| 20 | GASKET, H.P. VALVE ALUMINUM | 2 | FCDB1305 | |
| 21 | HP SUCTION VALVE | 1 | FCMA607-P | |
| 22 | FORK-UNLOADING-H.P.S.V. | 1 | FCBB920 | |
| 23 | BUFFER ASSEMBLY-UNLOADER OVERTRAVEL | 1 | FCBB921 | |
| 24 | HIGH PRESURE SUCTION VALVE COVER PLATE | 1 | 2601039600 | |
| 25 | SCREW - SET HEX HEAD, CUP PT 3/8 X 1 3/4"LG | 3 | FVH08KN | |
| 26 | CYLINDER ASSEMBLY/UNLOADER H.P.S.V. | 1 | FCBB926 | |
| 27 | NIPPLE-BLACK 2 X 8 5/8 T B E SEAMLESS | 1 | FCM614 | |
| 28 | MANIFOLD CONNECTION | 1 | 2601494160 | |
| 29 | COMP MALE ELBOW90 1/4NPT X 1/4 OD BRASS | 1 | FVA15BCE | |
| 30 | TUBE, COPPER UNLOADER | 1 | FCBA996 | |
| 31 | COMPRESSION RUN TEE, 1/4 OD X 1/8NPT | 1 | FVA729 | |
| 32 | STUD-CYLINDER HEAD | 9 | FCMA652 | |
 |
||||
| LPSV SERVICE KIT | ||||
| KIT NUMBER | PARTS | DESCRIPTION | QTY | |
| FCDB1317-P | VALVE LP SUCTION | 1 | ||
| FCDB1304 | GASKET LOW PRESSURE VALVE | 1 | ||
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 4 | ||
| FCM657 | GASKET VALVE PLATE C200-300, C98, C100 | 1 | ||
| FVA729 | TEE COMP RUN 1/8 NPT X 1/4 OD X 1/4 OD | 1 | ||
| FSK-C98LPSV | FCA29948 | SPRING UNLOADER FORK | 1 | |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 4 | ||
| FRK2063 | NUT STUD REPLACES RK29E | 4 | ||
| FVH08KP | SCREW SOCKET HEAD CUP PT 3/8-16 X2 BL OX | 4 | ||
| FCBA959 | CYLINDER UNLOADER LP SUCTION VALVE ASSY | 1 | ||
| FCBB931 | FORK UNLOADER ASSY | 1 | ||
| * Item Not Available For Individual Sale | ||||
| LPDV SERVICE KIT | ||||
| KIT NUMBER | PARTS | DESCRIPTION | ||
| FCDB1318-P | VALVE LP DISCHARGE | 1 | ||
| FCM657 | GASKET VALVE PLATE C200-300, C98, C100 | 1 | ||
| FCDB1304 | GASKET LOW PRESSURE VALVE | 1 | ||
| FSK-C98LPDV | FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 4 | |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 4 | ||
| FVH08KP | SCREW SOCKET HEAD CUP PT 3/8-16 X2 BL OX | 4 | ||
| FRK2063 | NUT STUD REPLACES RK29E | 4 | ||
| * Item Not Available For Individual Sale | ||||
| 2 | ||||
CALL FOR PRICES:
214-428-2868
WE DROP SHIP ANYWHERE WITHIN THE USA.
 |
||||
| HP VALVE SERVICE KITS | ||||
| HPSV SERVICE KIT | ||||
| KIT NUMBER | PARTS | DESCRIPTION | ||
| FCMA607-P | VALVE SUCTION ASSY | 1 | ||
| FCDB1305 | GASKET HIGH PRESSURE VALVE ALUMINUM | 1 | ||
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 3 | ||
| FCM656 | GASKET VALVE HIGH PRESS ORDER W/ CM657 | 1 | ||
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 3 | ||
| FSK-C98HPSV | FVH08KN | SCREW HEX HD CUP PT 3/8-16 X 1-3/4 BL OX | 3 | |
| FRK2063 | NUT STUD REPLACES RK29E | 3 | ||
| FCBB921 | BUFFER ASSY UNLOADER OVER TRAVEL | 1 | ||
| FCA29948 | SPRING UNLOADER FORK | 1 | ||
| FCBB920 | FORK UNLOADER HIGH PRESS SUCTION VALVE | 1 | ||
| FCBB926 | CYLINDER ASSY UNLOADER HP SUCTION VALVE | 1 | ||
| * Item Not Available For Individual Sale | ||||
| HPDV SERVICE KIT | ||||
| KIT NUMBER | PARTS | DESCRIPTION | ||
| FCDB1320-P | VALVE DISCHARGE HIGH PRESSURE ASSY C98 | 1 | ||
| FCM656 | GASKET VALVE HIGH PRESS ORDER W/ CM657 | 1 | ||
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 3 | ||
| FSK-C98HPDV | FCDB1305 | GASKET HIGH PRESSURE VALVE ALUMINUM | 1 | |
| FVH12PL | SCREW HEX HD 1/2-13UNC X 1 1-3/8 GR5 ZN | 3 | ||
| FVH08KP | SCREW SOCKET HEAD CUP PT 3/8-16 X2 BL OX | 3 | ||
| FRK2063 | NUT STUD REPLACES RK29E | 3 | ||
| * Item Not Available For Individual Sale | ||||
| 3 | ||||
| GASKET & RINGS SERVICE KIT | ||||
| GASKET SERVICE KIT | ||||
| KIT NUMBER | PARTS | DESCRIPTION | ||
| FCMA620 | GASKET SIDE DOOR | 3 | ||
| FCM656 | GASKET VALVE HIGH PRESS ORDER W/ CM657 | 2 | ||
| FCM657 | GASKET VALVE PLATE C200-300, C98, C100 | 2 | ||
| FCM659 | GASKET INTERCOOLER MANIFOLD | 2 | ||
| FCM660 | GASKET CYLINDER HEAD | 1 | ||
| FCM665 | GASKET BREATHER COVER ALL ML | 1 | ||
| FCX2162 | GASKET CRANKCASE | 1 | ||
| FSK-C98GK | FCX2163 | GASKET END PLATE | 1 | |
| FVH1224 | WASHER .650 X .958 X .0475 COPPER | 2 | ||
| FVH1232 | WASHER 9/16 X 25/64 X 0.051 ALUMINUM | 14 | ||
| FCDB1304 | GASKET LOW PRESSURE VALVE | 2 | ||
| FCDB1305 | GASKET HIGH PRESSURE VALVE ALUMINUM | 2 | ||
| FCA2312A | GASKET/FLANGE COVER PLATE - REPL CA2312 | 1 | ||
| FVB416 | O-RING | 1 | ||
| FCMA602 | END PLATE SMALL SHIM SET | 1 | ||
| FCX2325 | SMALL END PLATE GASKET | 1 | ||
| PISTON RING SERVICE KIT | ||||
| KIT NUMBER | PARTS | DESCRIPTION | ||
| FCMA631 | RING SET HP PISTON C98 | 1 | ||
| FSK-C98RNG | ||||
| FCMA630 | RING SET LP PISTON C98 | 1 |
AIR
COMPRESSOR SERVICE
E15C
COMPRESSOR PARTS
CURTIS C89 PUMP
CURTIS C98 PUMP
CURTIS ML SERIES COMPRESSOR PARTS
AIR
COMPRESSOR PUMP REPAIR
AIR COMPRESSOR MOTOR REPAIR
AIR
COMPRESSOR DRYER
AIR
COMPRESSOR DRYER SERVICE
214-428-2868
AIR
COMPRESSOR PARTS
AIR
COMPRESSOR OIL
CALL
H&k PUMP FOR SALES AND SERVICE. WE
REBUILD ALL CURTIS COMPRESSOR PUMPS. IN
ADDITION, WE TYPICALLY KEEP MOST OF THE PARTS IN STOCK EITHER INSIDE OUR
WAREHOUSE OR AT THE CORPORATE OFFICE. WE DROP SHIP DIRECTLY TO YOU.
214-428-2868
 |
| CURTIS C98 PUMP |
 |
| CURTIS C98 PUMP |
 |
| AIR COMPRESSOR SERVICE |
No comments:
Post a Comment
